GRILL - Anti-Glare System
Features
Key Features

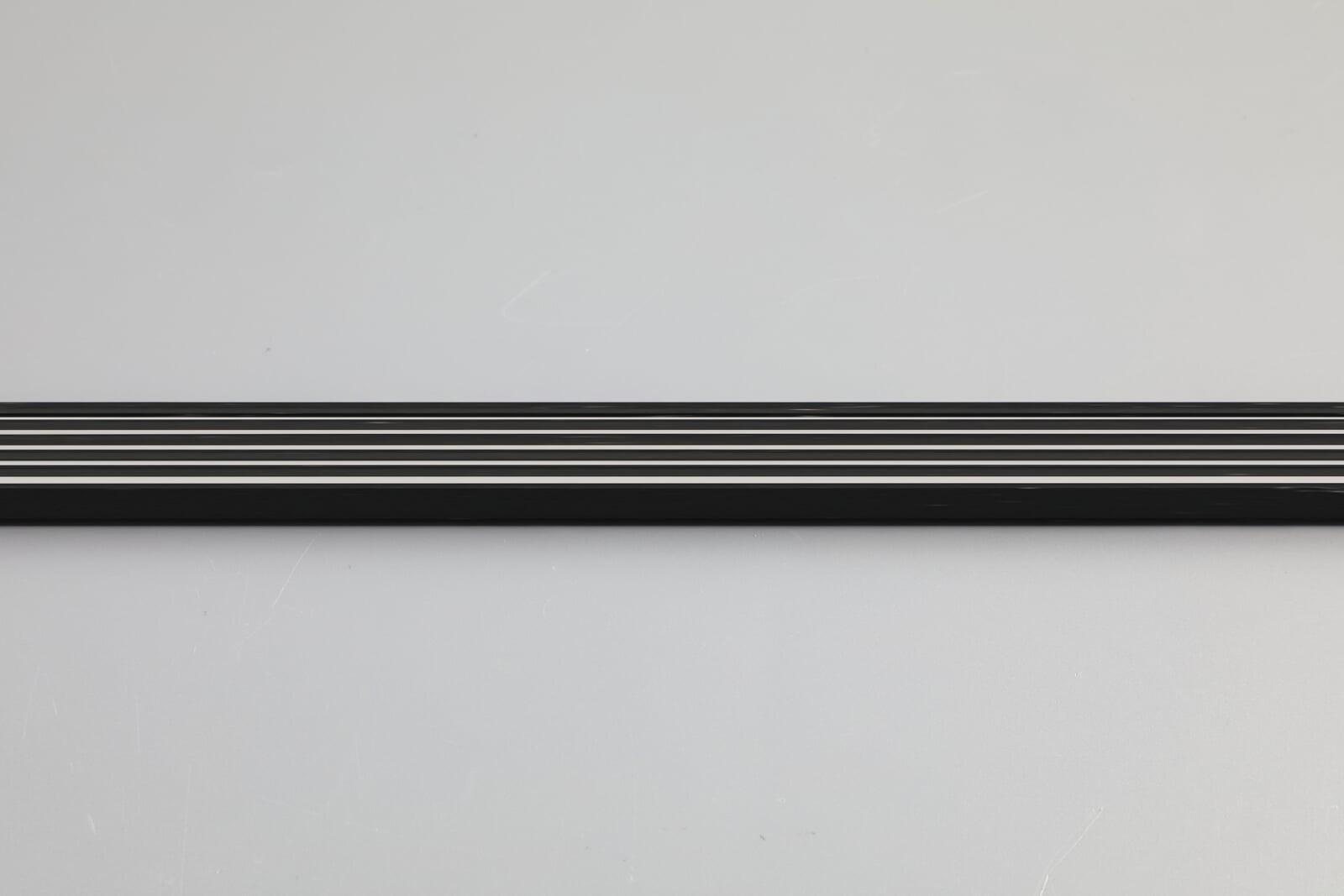

Grille Anti-Glare Optics
Medusa Grill uses a precision grille cover system that delivers UGR<19 visual comfort with a controlled 45° beam, reducing glare and improving viewing comfort in hospitality, workplace, and architectural environments.
On-Site Custom Length
With free-cutting increments and simplified field adjustment, Medusa Grill seamlessly integrates into custom millwork, alcoves, and architectural details without redesigning layouts or compromising installation precision.
Dual-Bend Flexibility

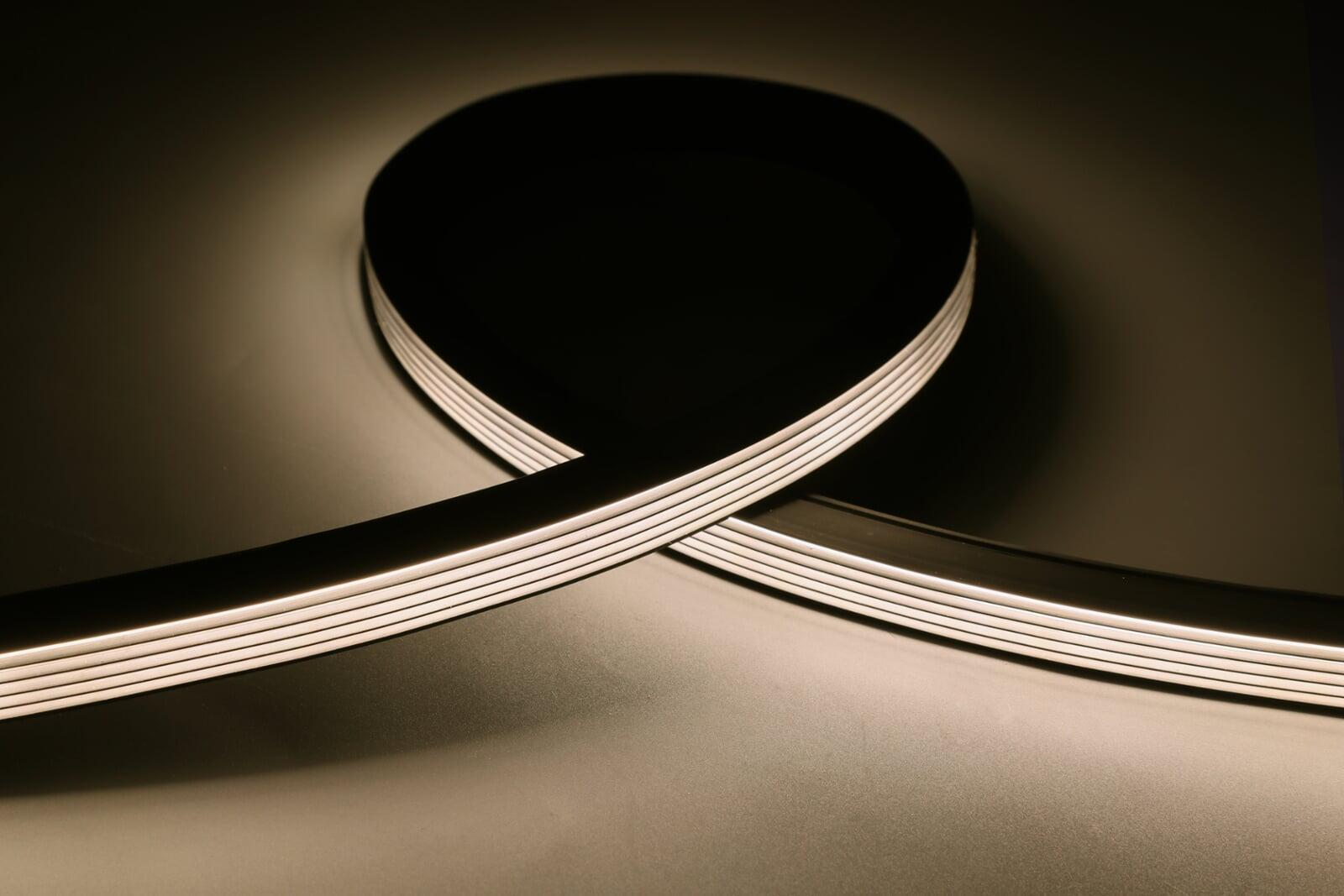

Engineered to bend horizontally and vertically, Medusa Grill conforms to curved, angled, and irregular surfaces, enabling clean continuous light lines where traditional linear fixtures cannot physically adapt or follow geometry.
Built for Demanding Environments
Constructed from food-grade silicone with high impact resistance, IP67 protection, and strong weather durability, Medusa Grill performs consistently in both indoor and outdoor environments requiring longevity and reliability.
Gallery
Configurations
Bending Options
Bending
Dual-Bend
Configurations
Power Cable Feed
Power Feed
Rear Feed
Power Feed
Side Feed
Power Feed
Bottom Feed
Accessories
Mounting & Fixation

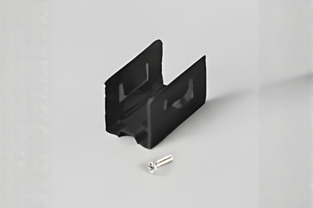

Bracket & Screw
Aluminum Profile

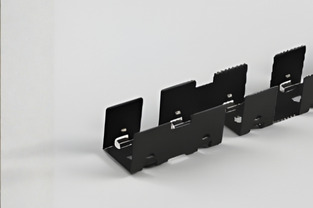

Bendable Profile
Dual-bend plaster-in aluminum profile
Specifications
Technical Data
CCT - Color Temperature
2700K, 3000K, 35000K, 4000K, 5000K, 6000K
Available: Tunable CCT 2700-6000K
CRI - Color Rendering Index
>80CRI, >90CRI
Luminous Flux Density
137 lm/ft
137 lm/ft
Beam Angle
110°, 45° (UGR＜19)
110°, 45° (UGR＜19)
Overal Dimension
Free Cutting
Standard - Free Cutting at any length
Tunable CCT - 1.97" (50mm) increments
Finish
Deep Black
Installation
Multiple options - Refer to Accessories
Operating Voltage
24VDC
Dimming
0–10 V / 1–10 V / DALI / PWM / CASAMBI
0–10 V / 1–10 V / DALI / PWM / CASAMBI
Power
4.27W/ft
4.27W/ft
